4P WIFI Smart MCB Commercial Power Management

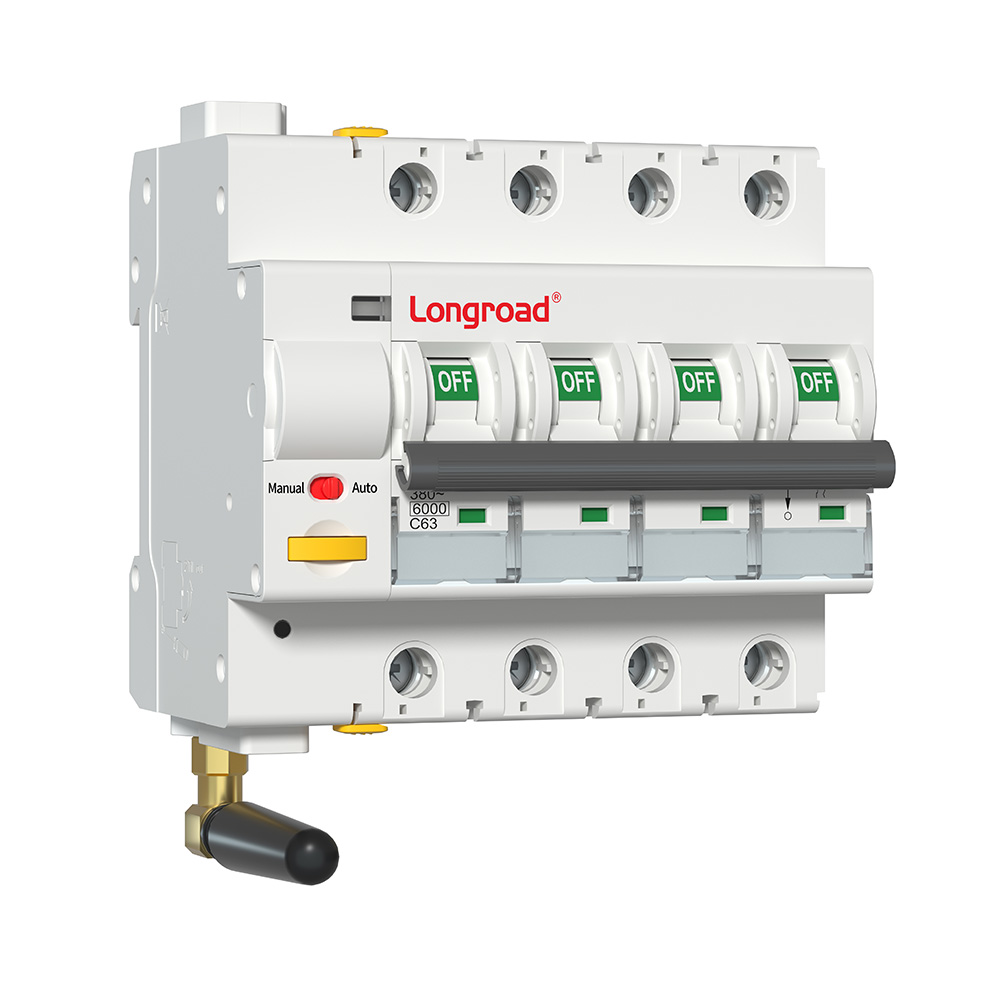

Model LRR6 Smart WIFI Operating Circuit Breaker is an electrical terminal distribution device developed for smart and safe electricityand energy management systems in buildings, This product is an Internet of Things (loT) smart circuit breaker that uses wireless WIFI communication to control the normal operation of traditional circuit breakers, It features remote opening and closing control,local mode selection, timed opening and closing settings, and other functions.
Quantity:
4P WIFI Smart MCB (Model LRR6) is an advanced IoT-enabled smart circuit breaker, purpose-built for smart power distribution, safety management, and energy optimization in commercial and industrial building systems. Engineered with stable wireless WIFI connectivity, this 4 pole smart MCB delivers seamless remote control, intelligent circuit protection, and data-driven energy management for three-phase power systems, fully addressing the core needs of project contractors, system integrators, commercial facility operators, and industrial power management teams. Unlike traditional passive circuit breakers, this commercial smart circuit breaker integrates manual and automatic control modes, supporting flexible on-site and remote operation to streamline power management for large-scale commercial and industrial projects, while complying with IEC: 60898 international standards.
Core Features & Project-Focused Advantages
Multi-Mode Control & Unlimited Remote Access

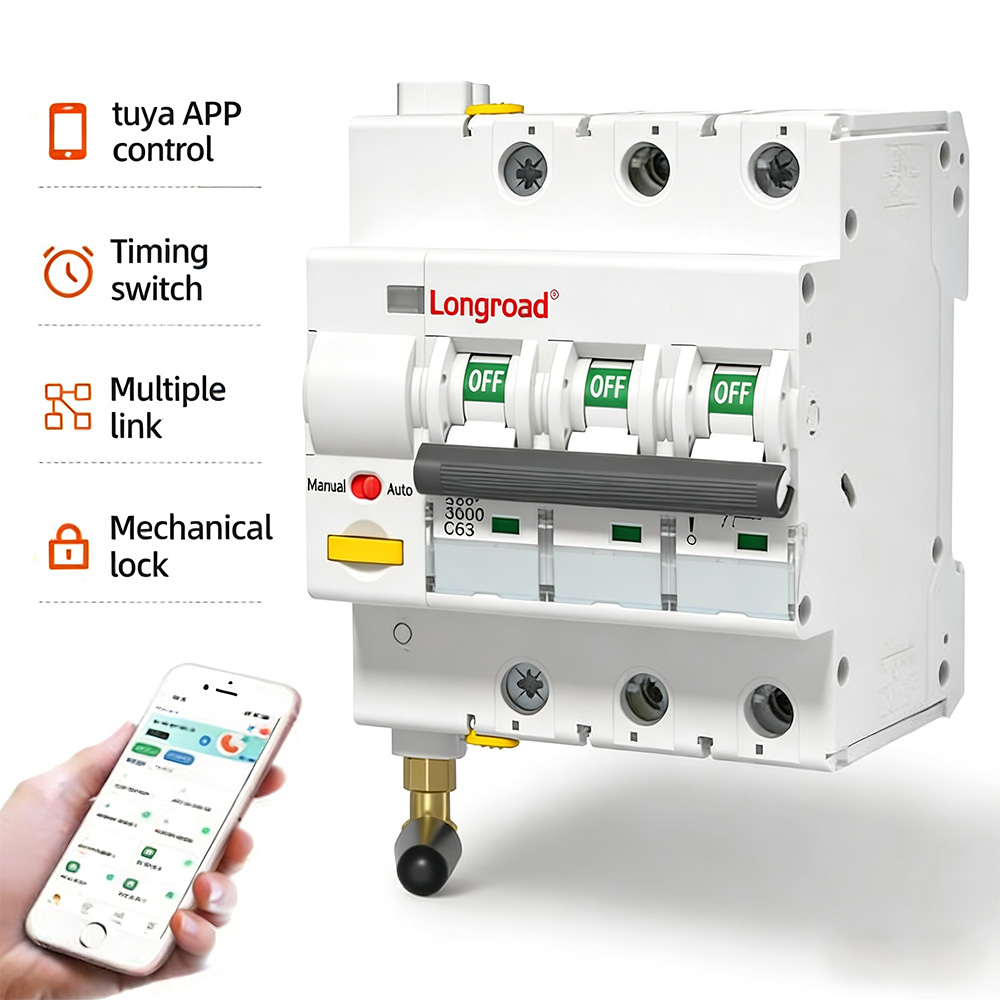

This remote control industrial circuit breaker supports both local manual operation and unlimited-distance remote control via Tuya APP, enabling real-time switching, status monitoring, and fault alerts for project teams regardless of geographic location. It also supports timed on/off settings, perfect for batch power management of public areas and industrial equipment.
Customizable Protection & Intelligent Reclosing
Exclusive for engineering projects, the protection thresholds of this DIN rail smart MCB are fully customizable, with configurable over-voltage protection and adjustable automatic reclosing time. It delivers ≤0.04S short circuit tripping and ≤0.1S overload tripping, ensuring rapid fault isolation and automatic power recovery to minimize project downtime.
Multi-Protocol Compatibility & Easy System Integration
The Tuya compatible 4P circuit breaker supports multiple communication protocols including Tuya WIFI, Tuya ZIGBEE, RS485, dry contact, and Mi Home WIFI, making it easy to integrate into various building automation systems and industrial control platforms for large-scale project deployment.
Standardized Mounting & Reliable Performance
It fits standard DIN-rail mounting for fast installation in existing distribution cabinets, with an IP20 protection rating, <3W standby power consumption, and wide operating temperature range from -20℃ to +70℃, adapting to complex commercial and industrial environments.
Full Technical Specifications
Parameter
Specification Details
Poles
4P
Mounting poles
5P
Rated current
10A, 16A, 25A, 32A, 40A, 50A, 63A
Rated operating voltage & frequency
220/230VAC 50Hz
Rated breaking capacity
6KA
Trip curve type
Type C, Type D
Standby power consumption
<3W
Supported communication
Tuya WIFI, Tuya ZIGBEE, Mi Home WIFI, RS485, dry contact
Overload tripping time
≤0.1S
Short circuit tripping time
≤0.04S
Compliance standard
IEC: 60898
Control mode
Integrated manual & automatic control
IP rating
IP20

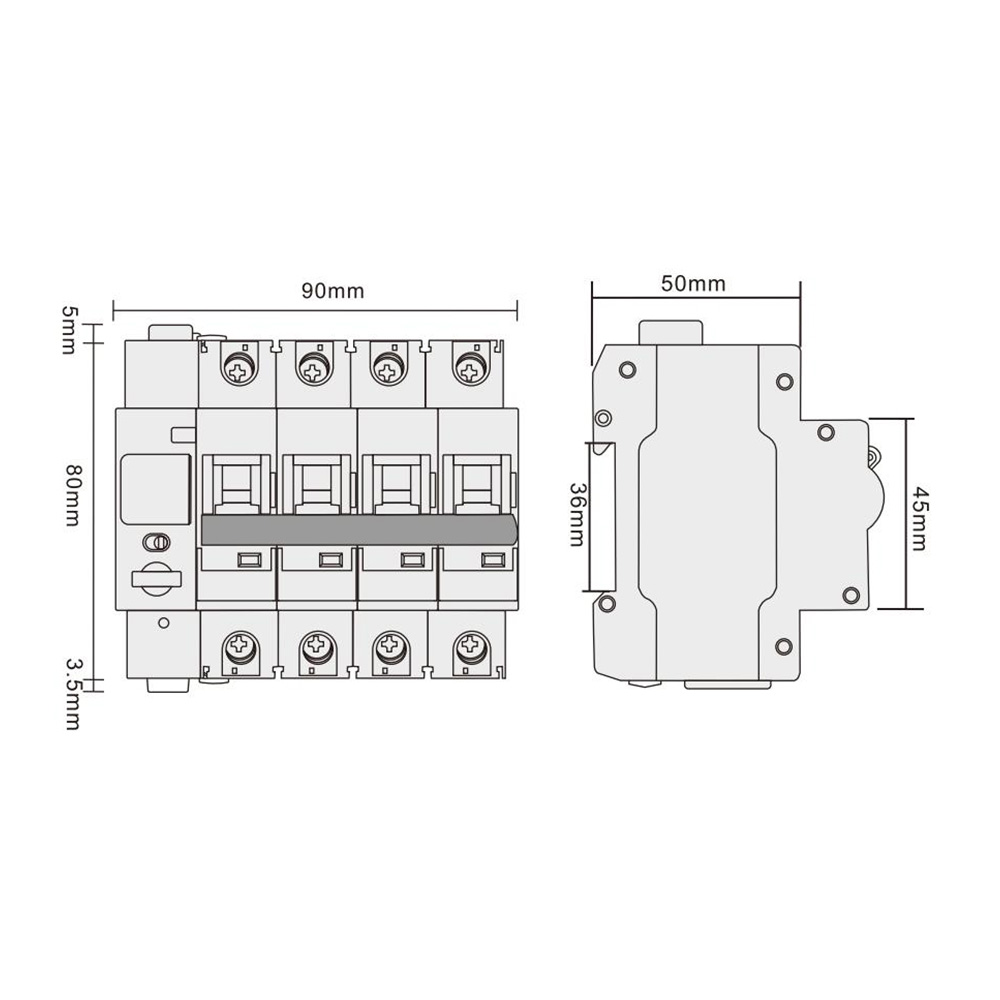

Product dimension
88.5mm×90mm×50mm
Configurable functions
Over-voltage protection, automatic reclosing, protection threshold customization
Target Industries & Application Scenarios
This commercial power management smart MCB is ideal for large-scale projects in core sectors: commercial & public infrastructure (shopping malls, office buildings, hotels, schools, retail shops), industrial & agricultural operations (factories, farms, greenhouses, breeding farms), and smart city & utility facilities (streetlights, charging stations, transportation hubs, urban parks). It enables time-sharing and zoning power control, sequential equipment start-stop, remote emergency power-off, and energy consumption optimization, reducing operational costs and improving electrical safety for project operators.
Product Operate Guide
Download and register the Tuya APP on your mobile device, then log in to your account.

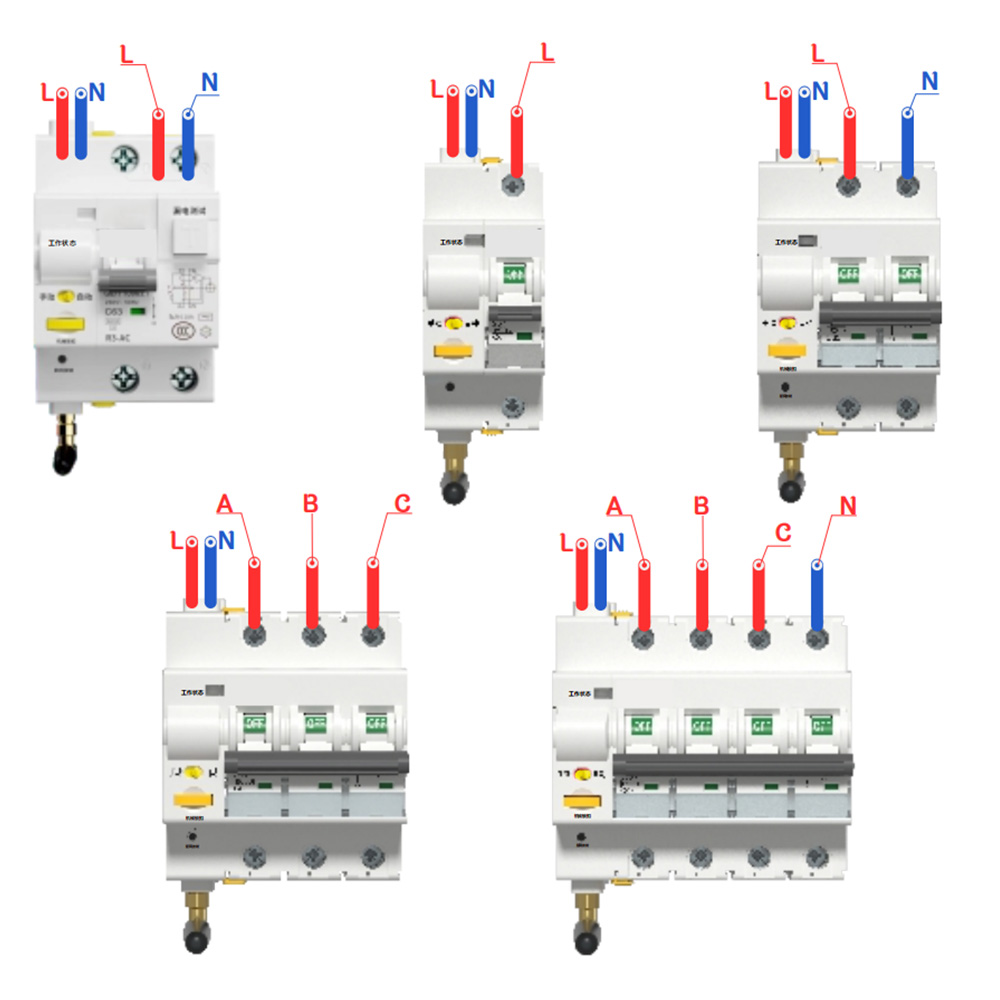

Complete wiring per the standard diagram: connect the upper terminal to the power supply and the lower terminal to the load, then power on the device and wait for the indicator light to activate.
10 seconds after power-on, press and hold the networking button until the WIFI indicator flashes, meaning the device has entered pairing mode.
In the Tuya APP, click the "+" icon in the top right corner to enter the device adding interface, and wait for the app to detect the device.
Select the 2.4G WIFI network for the device to connect to (5G networks are not supported), then click "Next".
Wait for the device pairing process to complete, and follow the on-screen prompts for subsequent settings.
Select the device category, set the project-specific device name, and click "Finish" to complete the setup.
FAQ
What communication protocols does the 4P WIFI Smart MCB support for project integration?
It supports Tuya WIFI, Tuya ZIGBEE, Mi Home WIFI, RS485, and dry contact protocols, fully adapting to mainstream building automation and industrial control systems for batch project deployment.
Can the protection parameters be customized for different project requirements?
Yes, the protection thresholds of this commercial smart circuit breaker are fully customizable, with adjustable over-voltage protection settings and configurable automatic reclosing time to meet diverse project needs.
What are the installation environment requirements for this device?
It supports standard DIN-rail mounting, with a maximum installation altitude of 3000m, operating temperature range of -20℃ to +70℃, and IP20 rating for indoor installation only.
