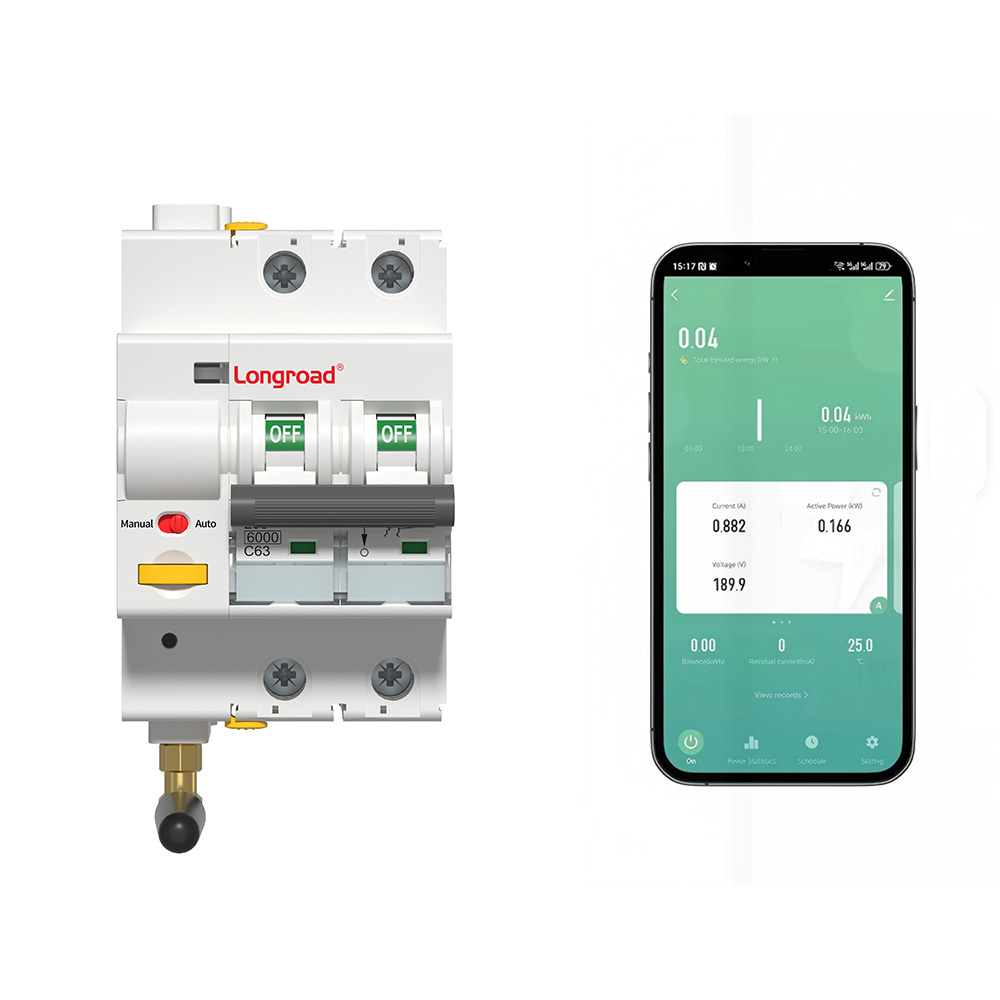

2P Smart MCB WIFI Hotel Power Management

The 2P Smart MCB WIFI (Model LRR6) is a premium IoT smart circuit breaker, exclusively developed for intelligent safe electricity use and refined hotel power management systems in commercial accommodation, residential, and small-to-medium commercial buildings. Using stable wireless WIFI communication, this 2 pole smart WIFI circuit breaker empowers traditional low-voltage distribution devices with intelligent control, featuring remote on-off control, local manual/auto mode switching, timed on-off configuration, and multi-device linkage. Compliant with IEC: 60898 standards, it is the optimal power management solution for hotel operators, real estate developers, commercial space managers, and electrical engineering service providers.

Core Features & Project-Focused Advantages

Full-Scenario Smart Control & Multi-Device Linkage

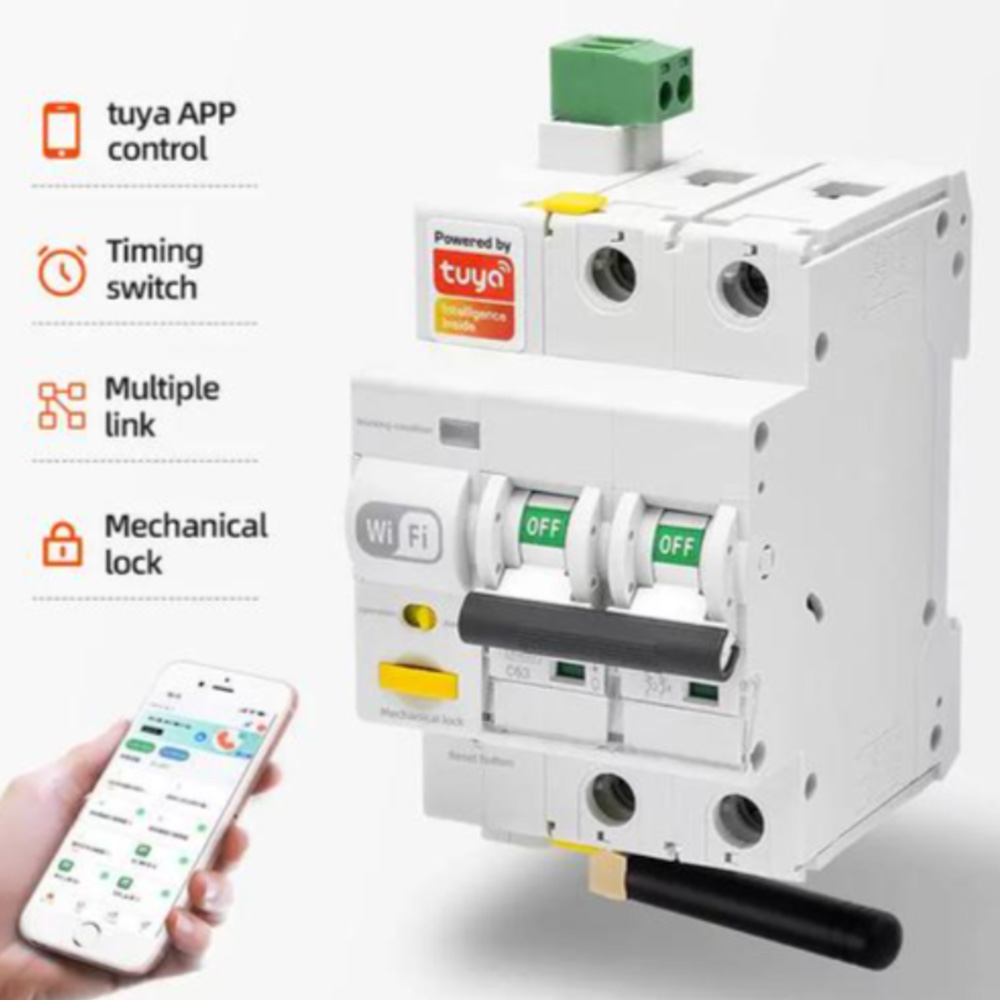

This remote timing control smart MCB supports Tuya APP remote management, one-click batch control, flexible timing switch settings, and multi-device smart linkage. It integrates manual and automatic control modes, with a mechanical lock design to prevent misoperation in commercial public areas, delivering both convenience and safety for daily operation.

Commercial-Grade Safety Protection & Stable Operation

With a 6KA rated breaking capacity, C/D type tripping characteristics, ≤0.1S overload tripping time, and ≤0.04S short-circuit response time, this commercial safety smart circuit breaker provides comprehensive protection against overload, short-circuit, and over-voltage. With <3W standby power consumption, it ensures 7×24 stable operation for commercial scenarios with zero unnecessary energy loss.

Standardized Installation & Retrofit-Friendly Design

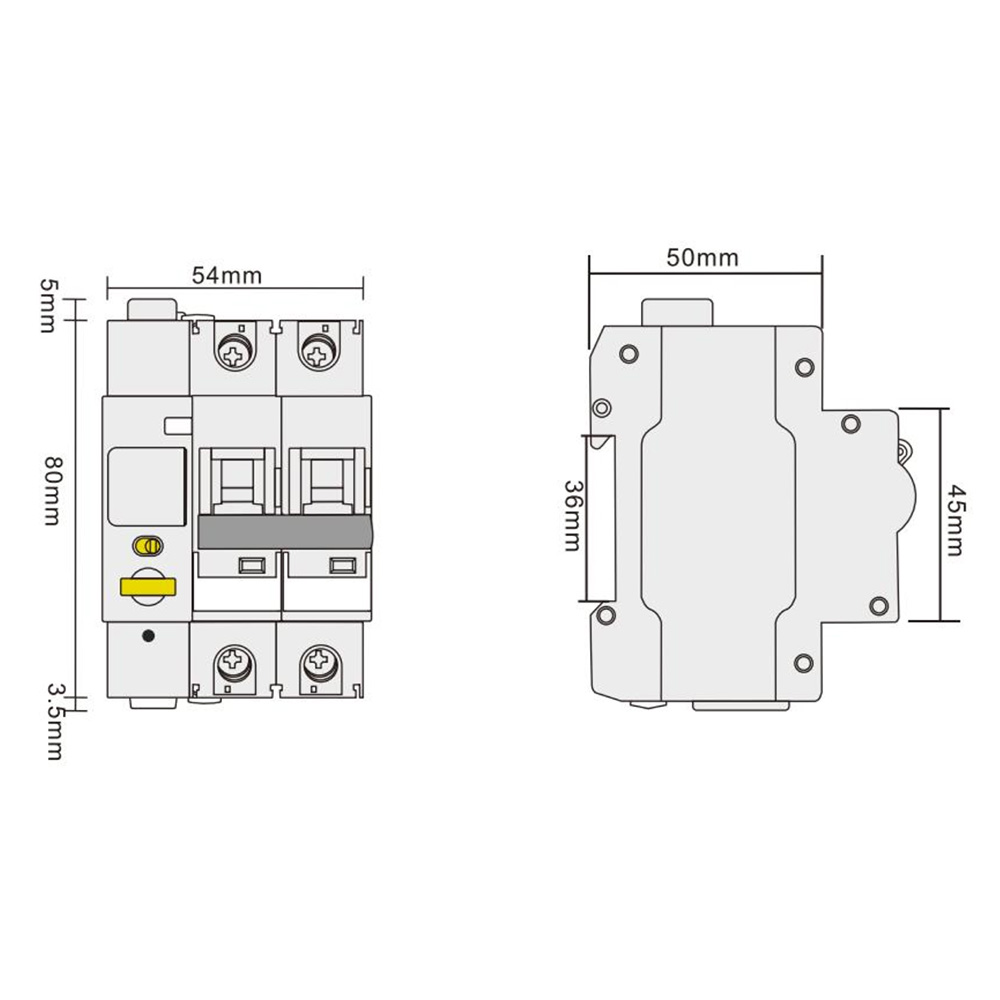

Adopting universal DIN-rail mounting, this DIN rail 2P smart MCB has a compact size of 88.5mm×54mm×50mm, fully compatible with the installation space of traditional 2P MCBs. It requires no major modification to existing wiring or distribution boxes, making it perfect for energy-saving retrofits of existing hotels, apartments, and commercial spaces.

Refined Energy Management & Cost Reduction

The hotel energy saving smart breaker provides real-time electricity consumption monitoring and data recording, supporting time-sharing and zone-based power control. It effectively eliminates energy waste from ever-burning lamps and idle air conditioners, helping commercial operators reduce electricity costs and improve operational efficiency significantly.

Full Technical Specifications

Target Industries & Application Scenarios

This hotel room power management MCB is optimized for single-phase two-wire power distribution scenarios, with core applications covering multiple commercial and residential fields.

For hospitality and commercial accommodation including hotels, serviced apartments, homestays, and rental housing, it enables centralized guest room power management, remote unattended control, and energy consumption optimization.

For residential and high-end real estate including smart homes, villas, and refined decoration apartments, it delivers whole-house intelligent power distribution, remote power-off safety protection, and household electricity habit optimization.

For small and medium commercial spaces including office buildings, retail shops, schools, and catering venues, it supports timed control of public area lighting and air conditioning, and emergency remote power-off in fire or water damage incidents.

Product Operate Guide

Start by downloading the Tuya APP, complete account registration, and log in to the management platform.

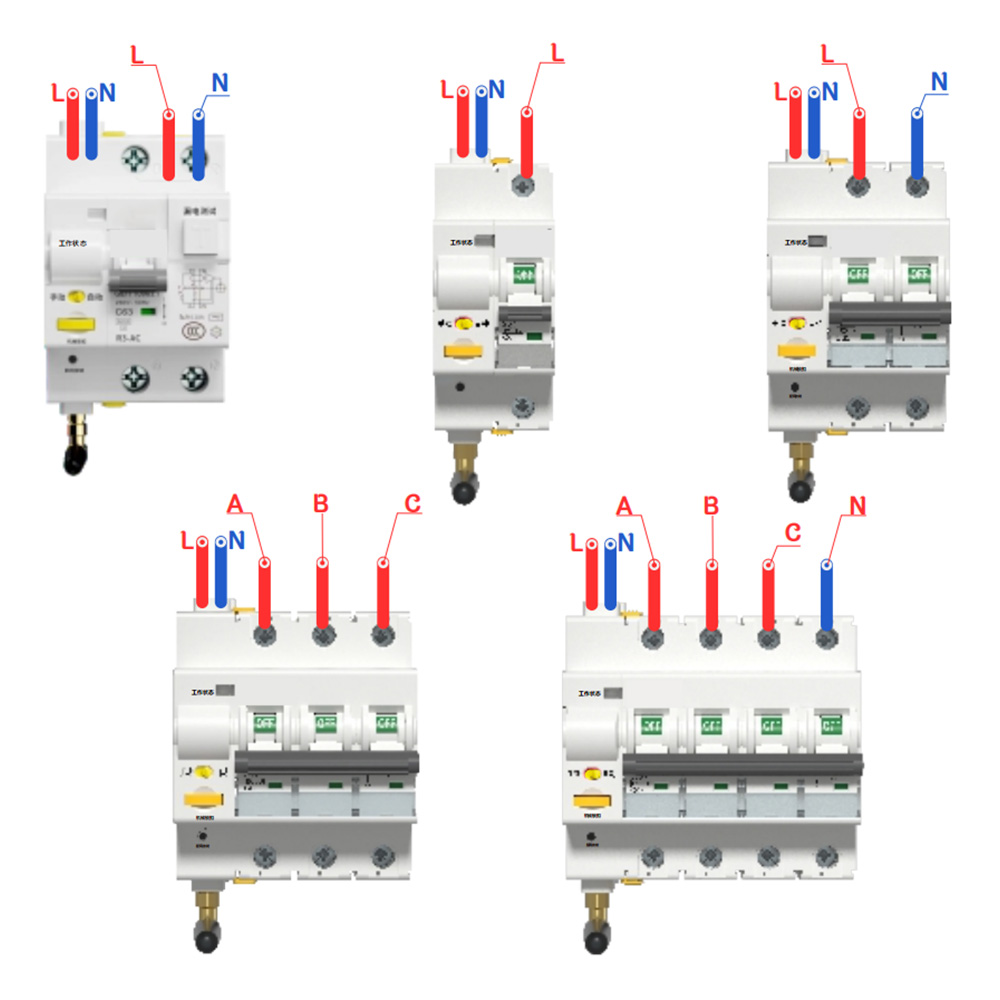

Wire the device per the standard diagram: connect the upper terminal to the single-phase power supply, lower terminal to the load; power on and wait for the indicator to light up.

10 seconds after power-on, press and hold the function button until the WIFI indicator flashes rapidly, noting that only 2.4G WIFI is supported for pairing.

Tap the "+" icon in the Tuya APP homepage to enter the device adding page, and select the "Smart Circuit Breaker" category.

Select the target 2.4G WIFI network, enter the correct password, and click "Next" to start pairing.

Wait for pairing completion, and follow the APP prompts to complete basic function configuration.

Name the device by room number or area, set up group control and timing rules, and finish commercial management deployment.

FAQ

Can the 2P Smart MCB WIFI realize batch management for hotel guest rooms?

Yes, it supports Tuya APP batch device addition, unified group control, and bulk timing rule setting, perfectly suited for centralized power management of hundreds of hotel guest rooms, greatly reducing property management workload.

Is this 2 pole smart circuit breaker suitable for the renovation of existing hotel distribution boxes?

Absolutely. It adopts standard DIN-rail mounting with an ultra-compact size, fully compatible with traditional 2P MCB installation spaces. No wiring or distribution box modification is required, achieving low-cost intelligent upgrade.

Can we set independent timing rules for different areas of the hotel?

Yes, the device supports zone-based and time-sharing control. You can set independent timing on-off rules for the hotel lobby, guest rooms, corridors, and back-office areas, effectively eliminating energy waste from long-running lights and idle air conditioning.
