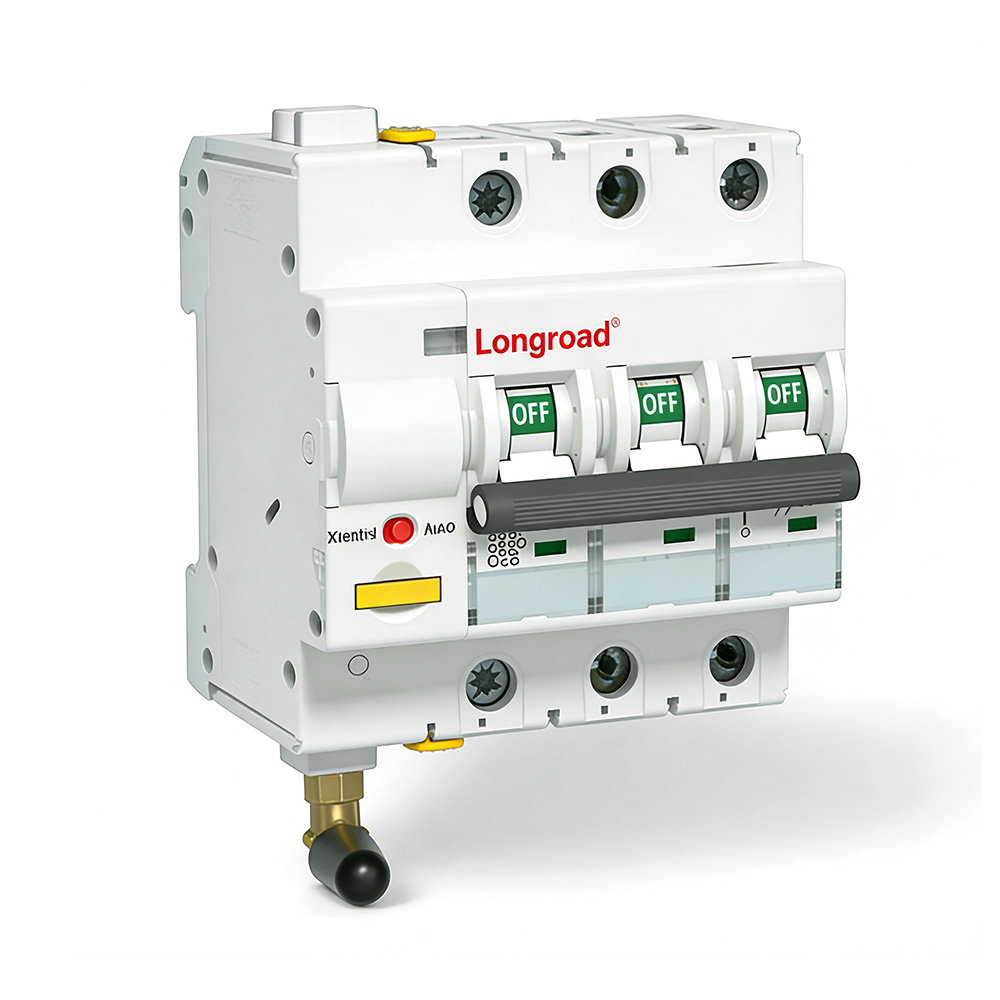

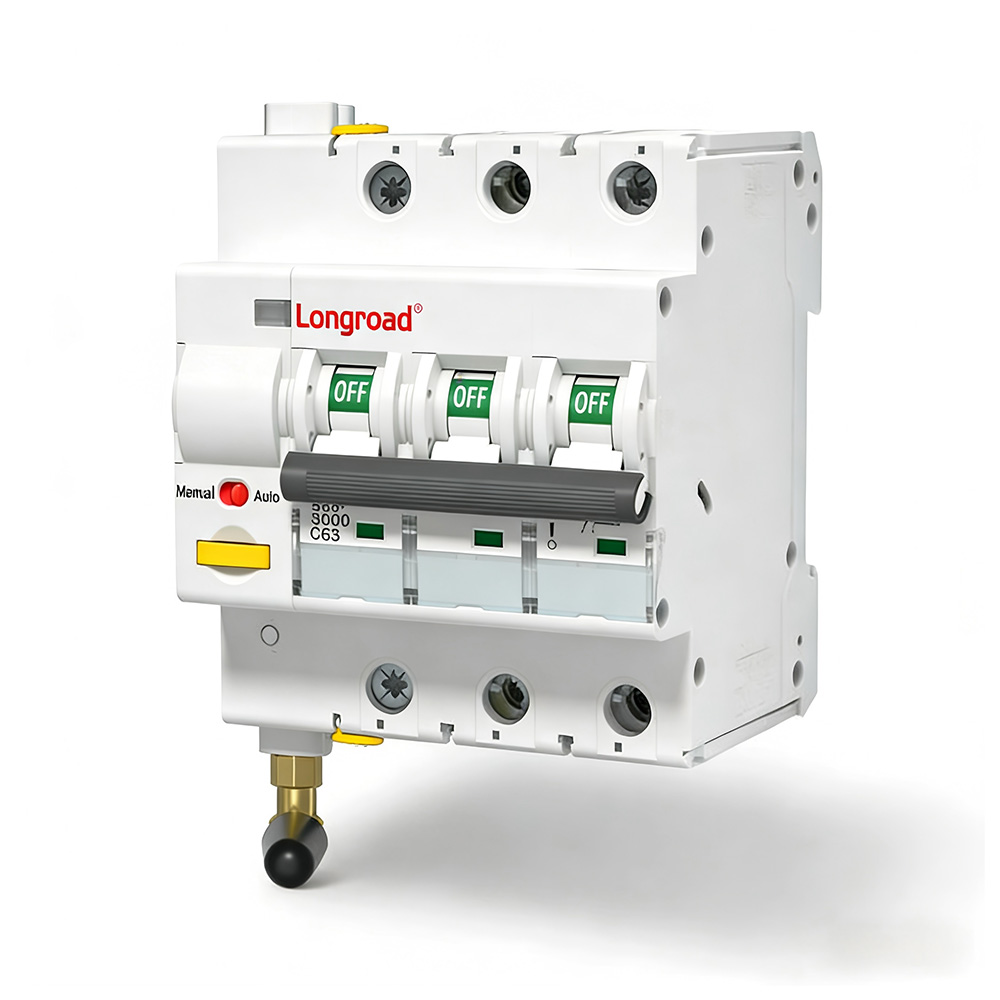

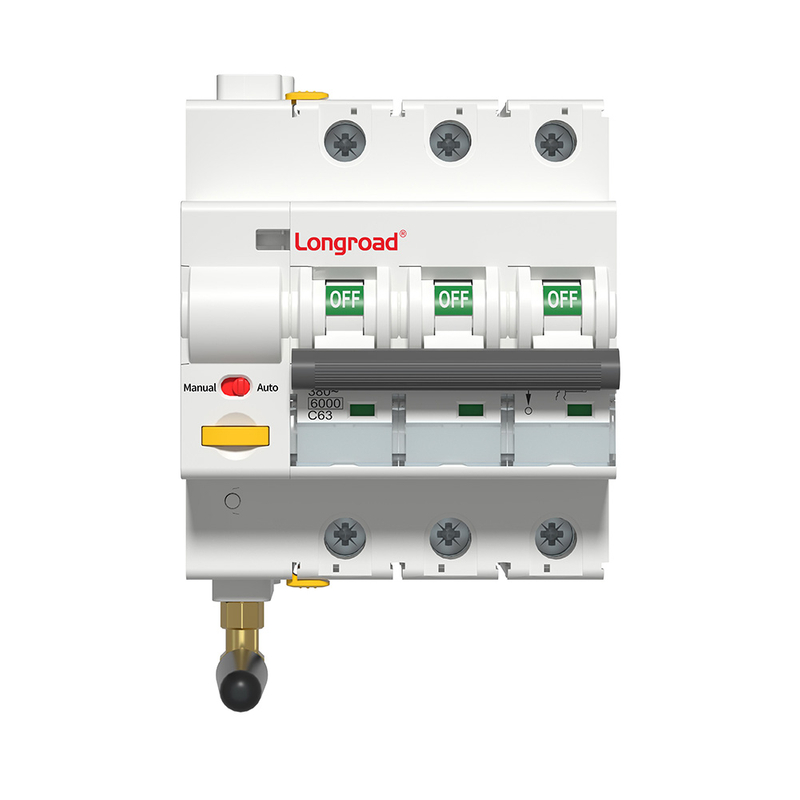

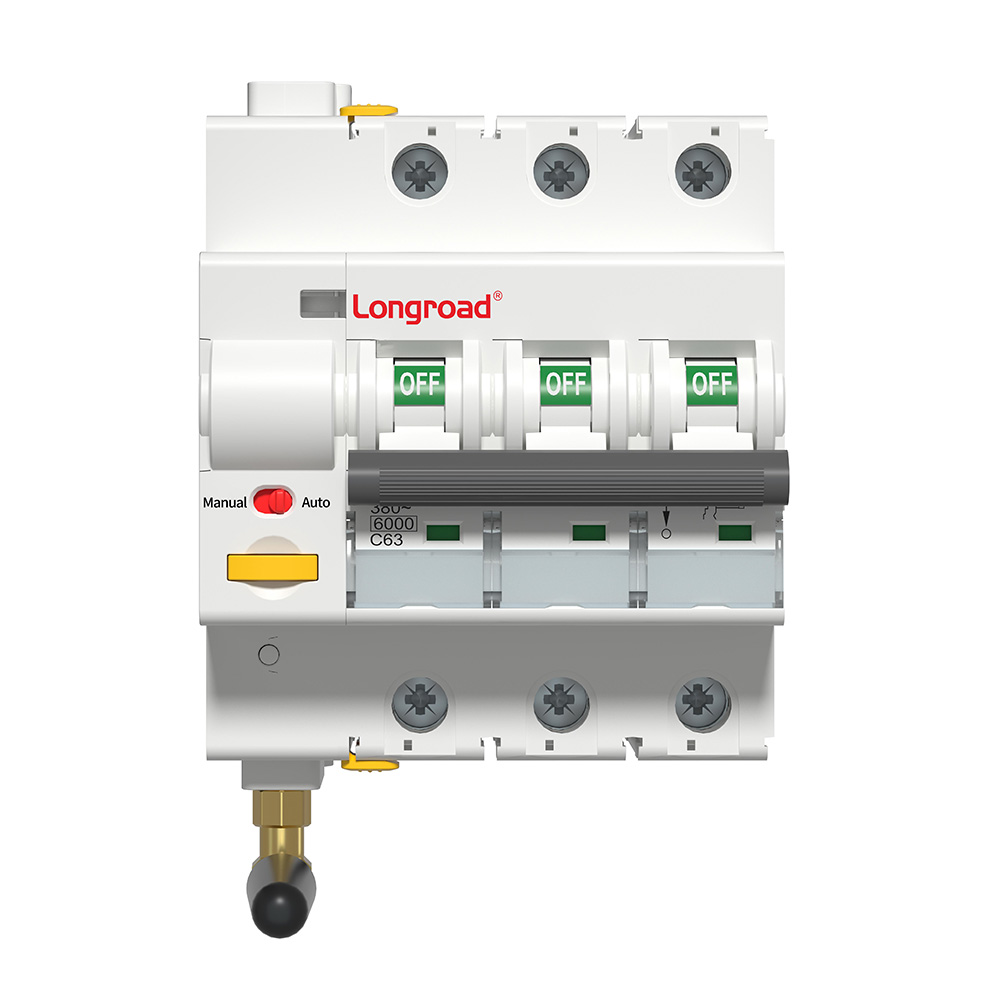

3P Smart MCB WIFI Factory Energy Management

The 3P Smart MCB WIFI (Model LRR6) is an advanced IoT-enabled smart circuit breaker, purpose-built for intelligent safe electricity distribution and factory energy management systems in industrial and large-scale commercial buildings. Leveraging stable wireless WIFI communication, this 3 phase smart WIFI circuit breaker upgrades traditional circuit breakers with intelligent control, delivering remote on-off switching, local mode selection, timed on-off configuration, and comprehensive electrical protection. Compliant with IEC: 60898 standards, it is the ideal power distribution solution for industrial system integrators, factory operators, and engineering contractors pursuing reliable, efficient smart energy management.

Core Features & Project-Focused Advantages

Multi-Protocol Compatibility & Unrestricted Control

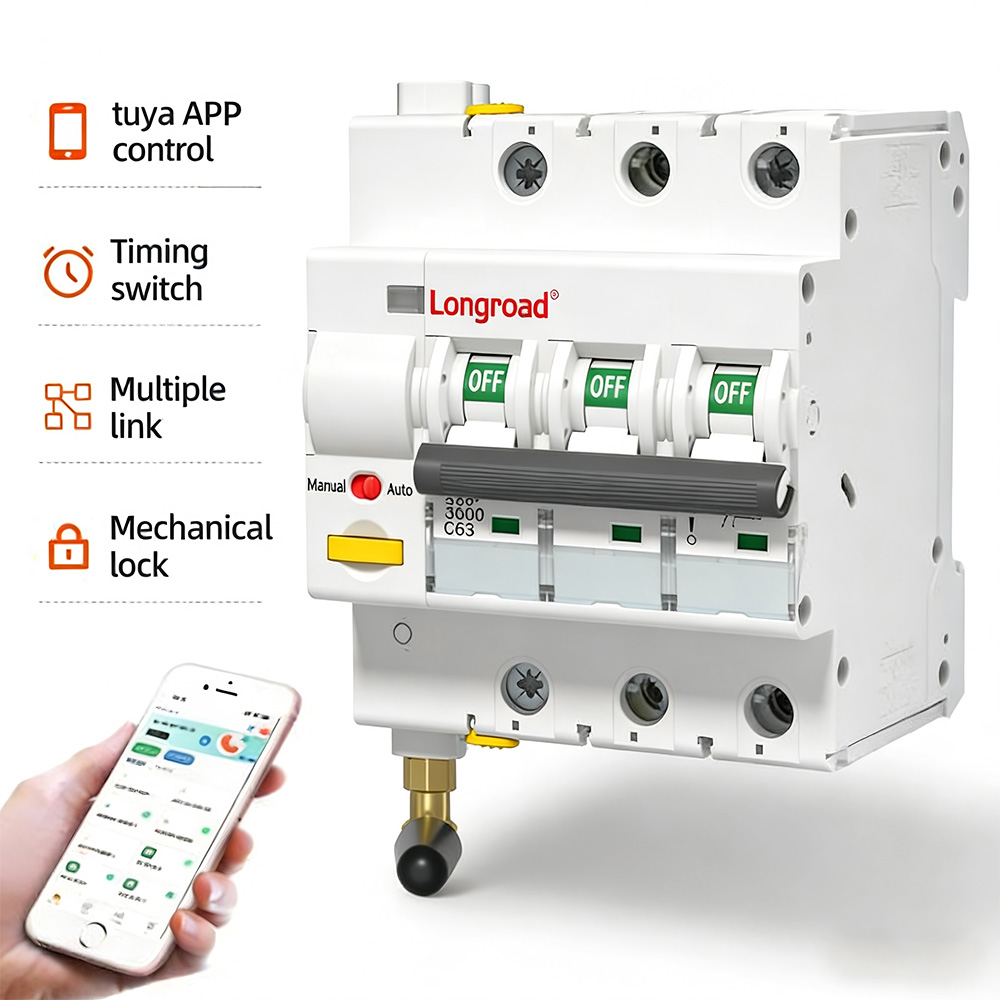

This DIN rail 3P smart MCB supports Tuya APP, RS485, dry contacts, and wireless kinetic energy access, enabling both local manual operation and unlimited-distance remote control. It seamlessly integrates into existing industrial control systems, with no geographical limits on remote switching, perfect for centralized management of multi-location factory facilities.

Customizable Protection & Intelligent Auto-Reclosing

It supports fully customizable protection thresholds, with an auto recloser function for configurable reclosing time logic. With a tripping time ≤0.1S and short-circuit action time ≤0.04S, it delivers rapid fault response, protecting industrial equipment from overload, short-circuit, and over-voltage damage while minimizing production downtime.

Industrial-Grade Adaptability & Standardized Installation

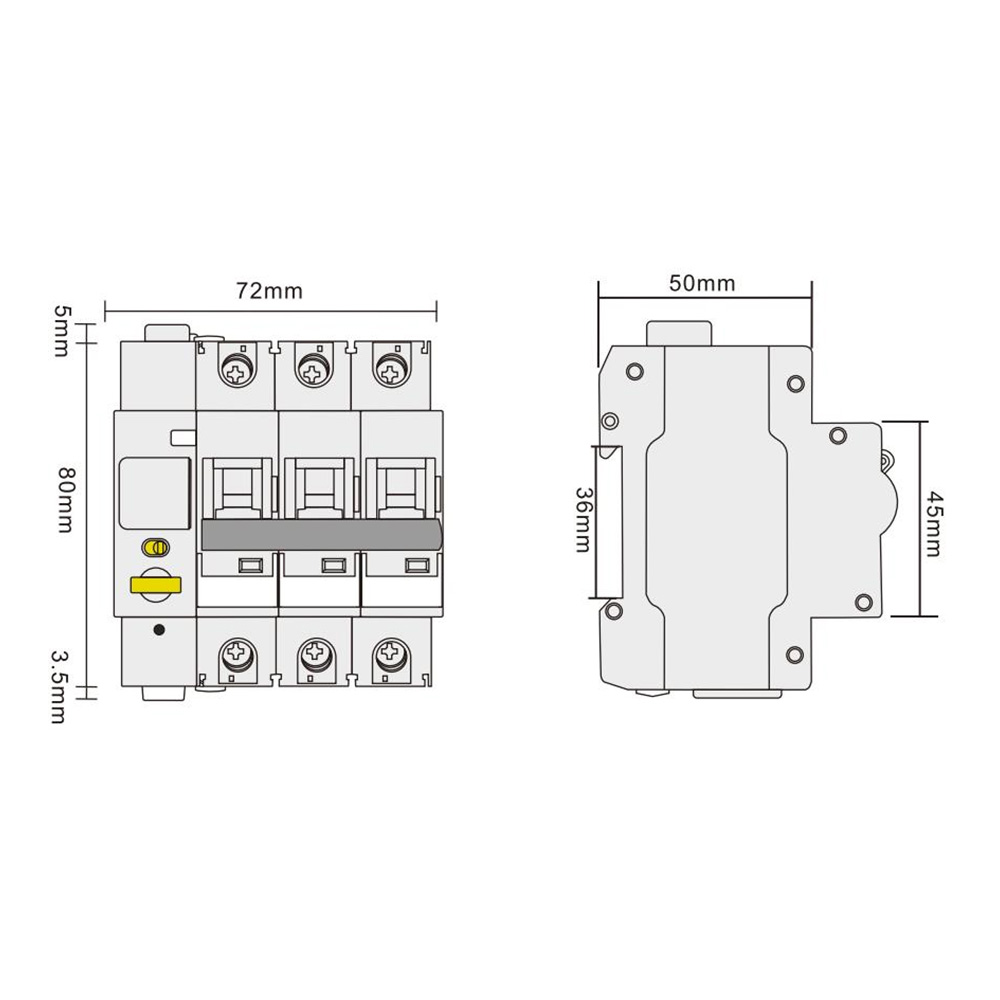

Designed for harsh industrial environments, it operates reliably between -20℃ and +70℃ at altitudes up to 3000m, with an IP20 protection rating. Standard DIN-rail mounting fits most industrial distribution cabinets, with 3P poles matching three-phase industrial power distribution requirements.

Precision Factory Energy Management

The factory energy management smart breaker provides real-time electricity consumption monitoring, enabling time-sharing and zone-based power control. It helps industrial users optimize electricity usage habits, reduce peak power costs, and achieve measurable energy savings for production lines and auxiliary facilities.

Full Technical Specifications

Target Industries & Application Scenarios

This industrial automation smart MCB is tailored for three-phase power distribution scenarios, with core applications covering multiple professional fields.

For industrial and agricultural facilities including factories, farms, greenhouses, and breeding farms, it enables automated production line control, sequential equipment start-stop to avoid inrush current, and time-phased electricity management.

For smart city and public infrastructure including streetlights, charging stations, transportation hubs, and parks, it supports remote O&M, real-time fault alarms, and leakage monitoring to prevent electrical fires.

For large-scale commercial complexes including shopping malls, office buildings, and high-end villa communities, it delivers centralized public area power management, emergency remote power-off, and whole-building energy optimization.

Product Operate Guide

Start by downloading the Tuya APP, complete enterprise account registration and login for batch project management.

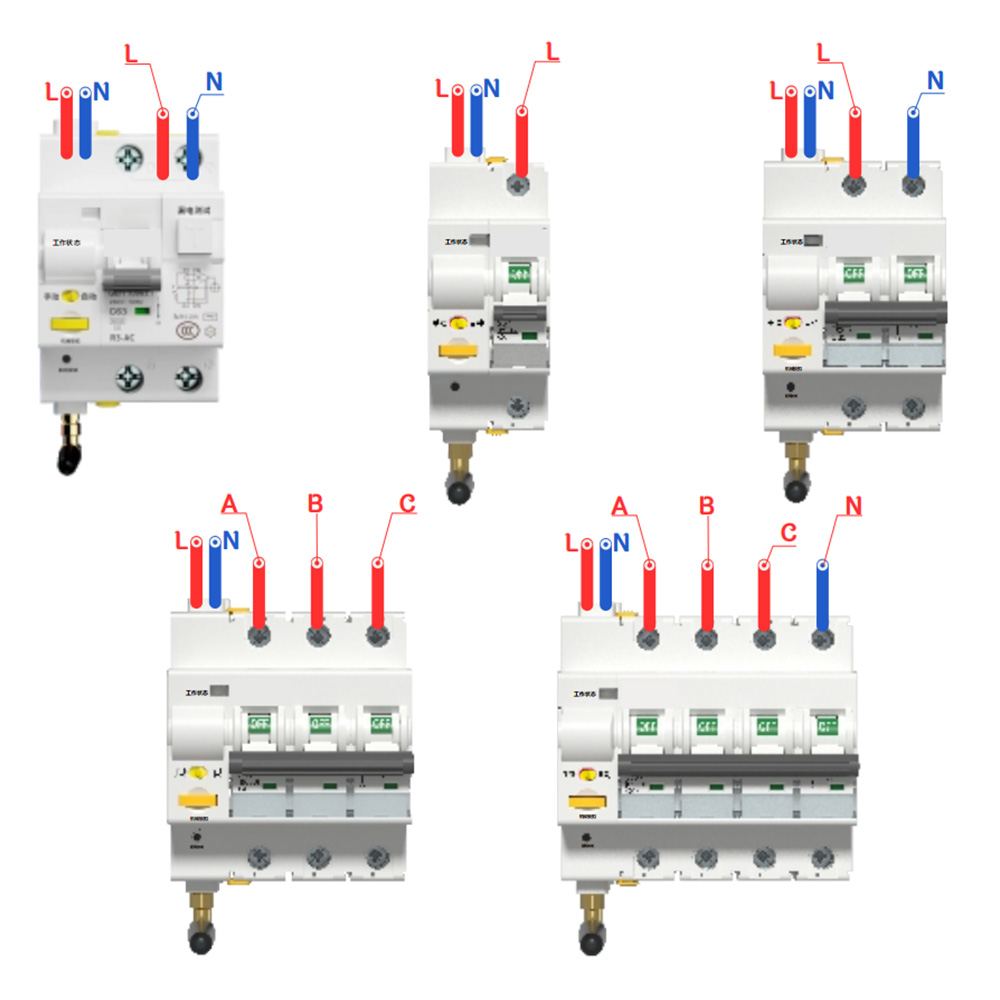

Wire the device per the standard diagram: connect the upper terminal to the three-phase power supply, lower terminal to the industrial load; power on and wait for the indicator to activate.

10 seconds after power-on, press and hold the pairing button until the WIFI indicator flashes, noting that only 2.4G WIFI is supported for pairing.

Click the "+" icon in the Tuya APP to enter the device adding interface, and wait for automatic device detection.

Select the target 2.4G WIFI network, input the password, and proceed with pairing.

Wait for pairing completion, and follow the prompts to complete initial configuration.

Create device groups, label names by workshop or area, and finish industrial project deployment.

FAQ

Can the 3P Smart MCB WIFI be integrated into our existing industrial SCADA system?

Yes, it supports RS485 communication and mainstream industrial protocols, enabling seamless integration with most SCADA and energy management systems, with customizable thresholds to match your project requirements.

What is the short-circuit breaking capacity of this 3 phase smart circuit breaker?

It has a 6KA rated breaking capacity with ≤0.04S short-circuit action time, fully meeting the safety requirements of low-voltage three-phase industrial distribution systems.

Can the auto-reclosing function be customized for factory production scenarios?

Absolutely. The reclosing time, cycle, and trigger logic are fully configurable, with support for sequential equipment start-stop to avoid inrush current impacts on production lines.
