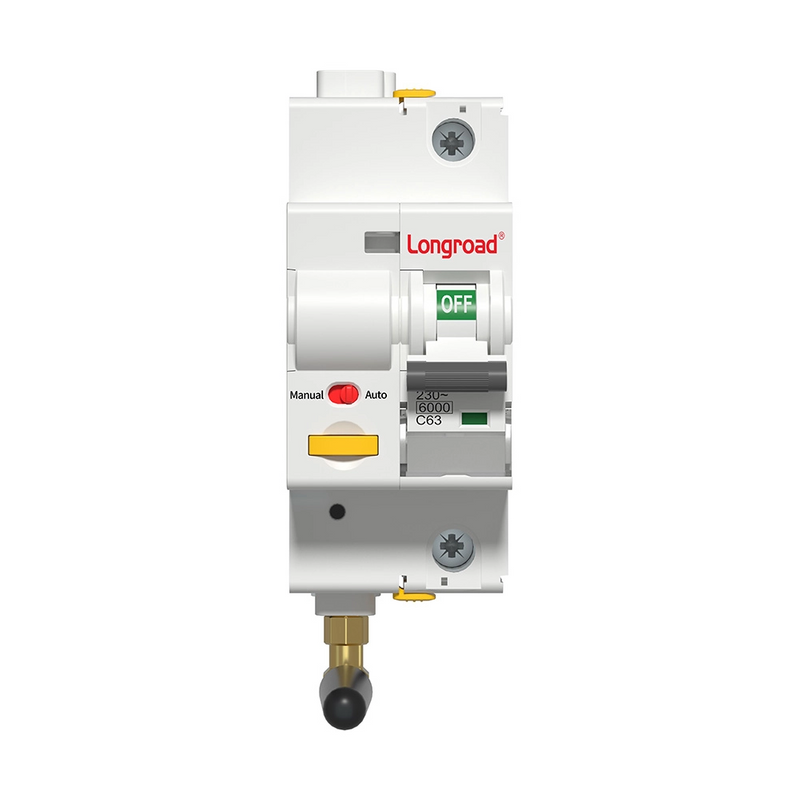

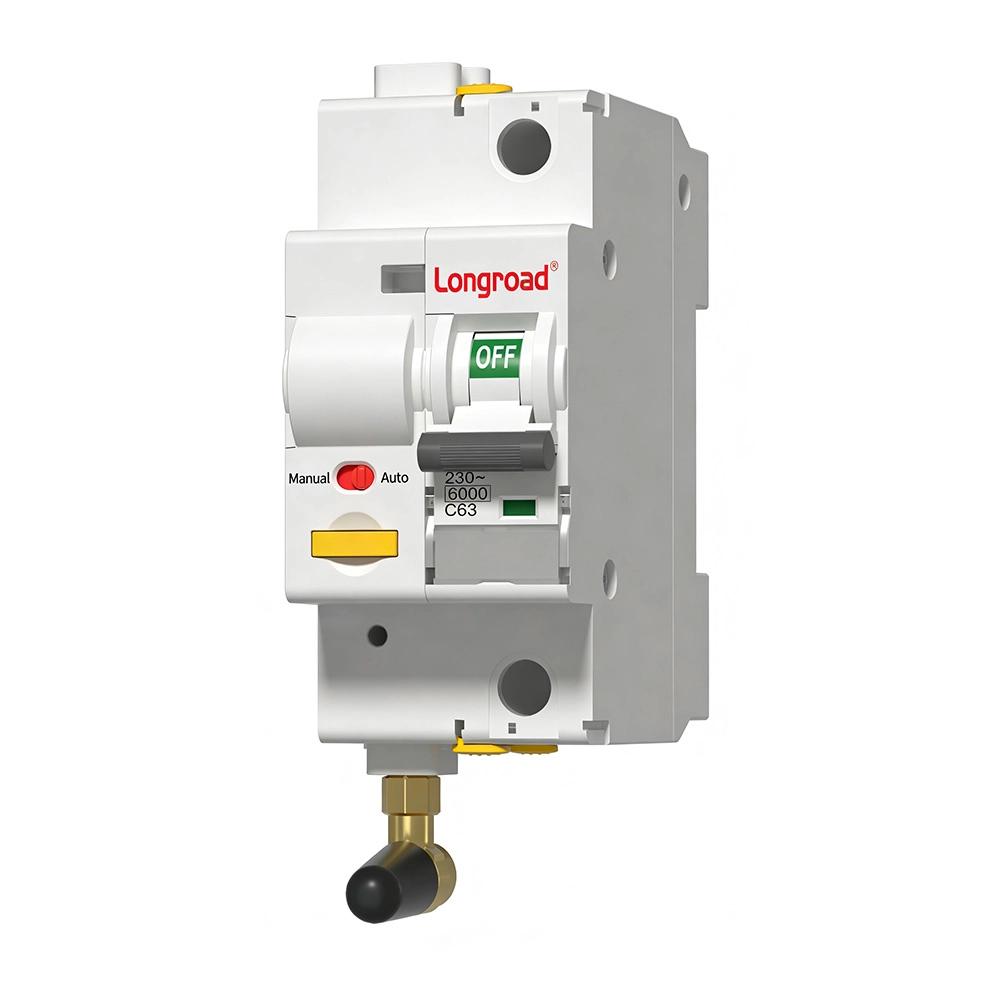

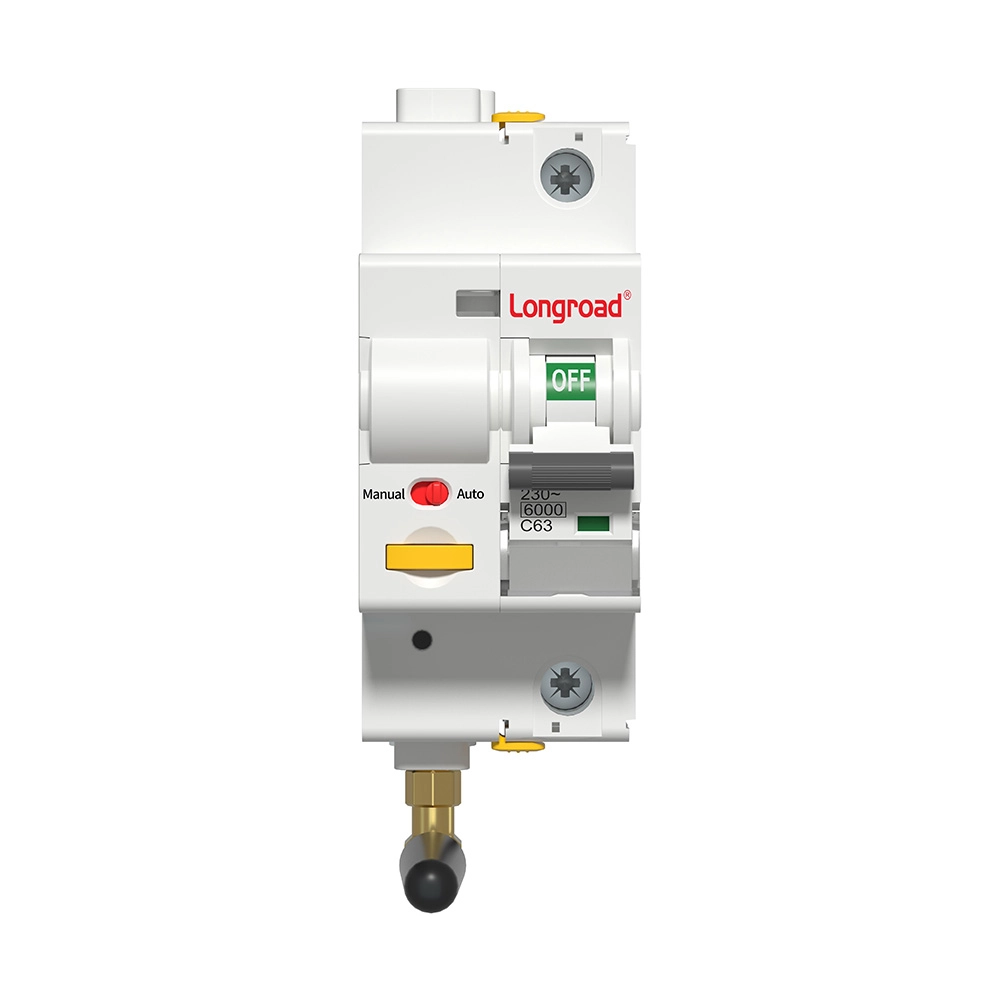

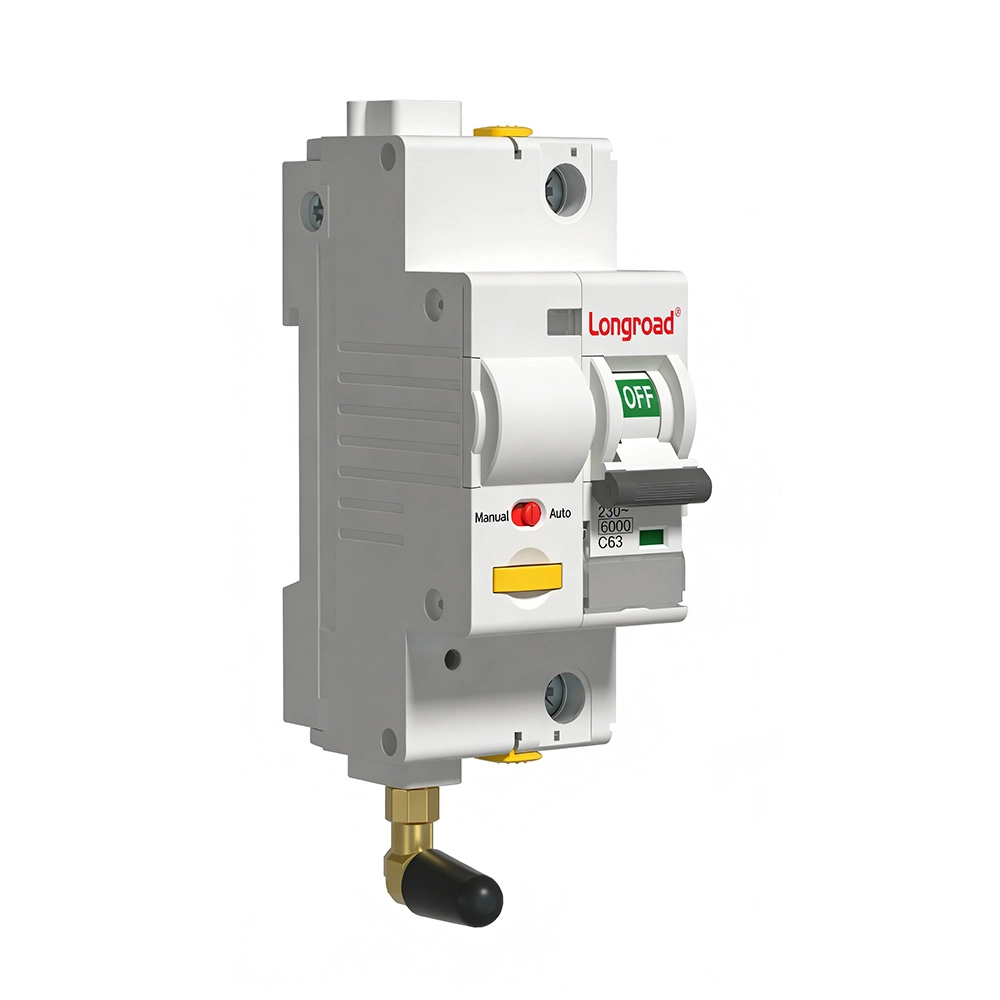

1P Smart MCB ZigBee Building Automation System

The LRR6 1P ZigBee Smart MCB is a high-performance IoT-enabled electrical distribution device, purpose-built for smart building automation, safe power management, and energy efficiency optimization across residential, commercial, industrial, and public infrastructure projects. As a Tuya-compatible ZigBee smart circuit breaker, it integrates manual & automatic dual control, unlimited remote switching, customizable protection, and auto reclosing functions, fully compliant with IEC: 60898 international standards. Designed for system integrators, electrical contractors, real estate developers, facility management teams, and wholesale distributors, this DIN-rail mount smart MCB delivers scalable, reliable, and cost-effective smart power control for large-scale deployments and custom project requirements.

Core Features & Project-Focused Advantages

Multi-Mode Compatibility & Flexible System Integration

This smart MCB supports Tuya APP, Mi Home, ZigBee, WiFi, RS485, dry contact, and wireless kinetic energy protocols. It eliminates extra development costs for system integrators, enabling seamless docking with existing building management systems (BMS), and fully adapts to diverse project specifications across different industries.

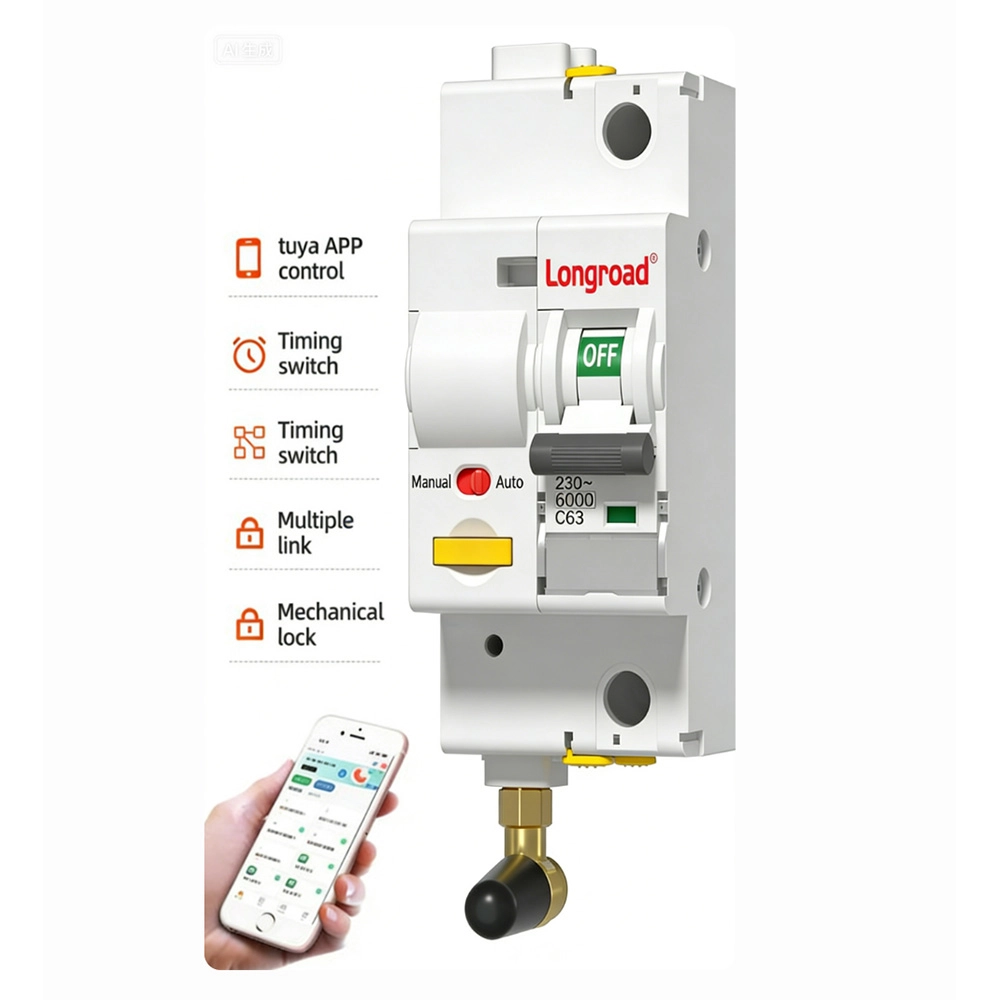

Local & Remote Dual Control with Customizable Automation

Equipped with integrated manual/auto operation modes, unlimited-range remote on/off, timed switching, and linked control functions. This feature drastically reduces on-site manual operation and labor costs for facility management teams, enabling centralized control of multi-site projects — such as timed lighting for public commercial areas, remote power management for rental housing, and automated equipment scheduling for industrial sites.

Full-Protection Safety System with Customizable Thresholds

Built-in over-voltage, overload, short circuit, and leakage protection, with a tripping time ≤0.1S and short circuit response time ≤0.04S, plus 6KA breaking capacity. Fully compliant with global electrical safety standards, it supports fully customizable protection thresholds to meet the unique safety specifications of different projects, minimizing electrical safety accidents and liability risks for project contractors and operators.

Configurable Auto Reclosing for Unattended Scenarios

Supports auto reclosing with fully customizable time settings. This function reduces on-site maintenance trips and operational costs for unattended scenarios such as streetlights, base stations, farms, and greenhouses, improving system uptime and reducing long-term O&M pressure for infrastructure operators.

Scalable Hardware & Tool-Free Fast Installation

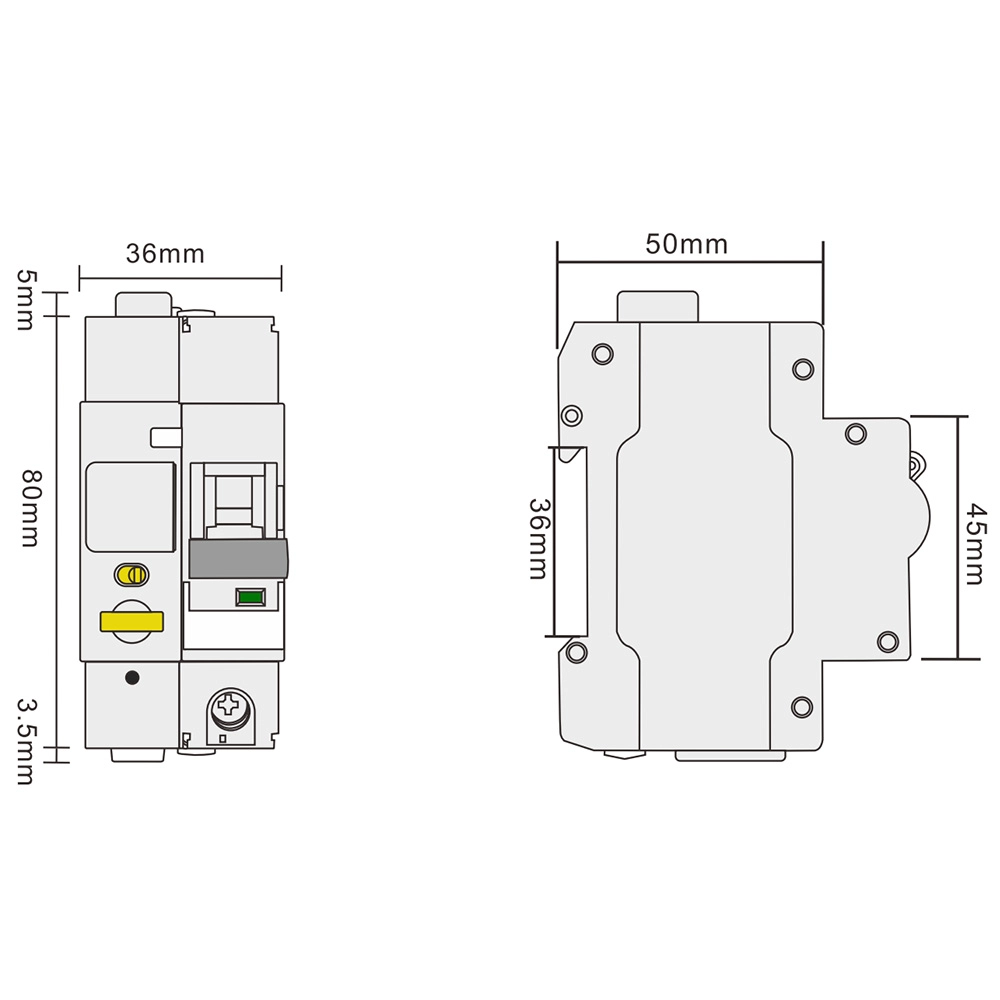

1P core specification with standard DIN rail mounting, with optional rated current ranging from 10A to 63A, and Type C/D trip curves available. It fits standard distribution boxes without modifying existing wiring, greatly reducing installation time and labor costs for bulk project deployment and retrofit projects.

Stable Performance for Harsh Environments

Wide operating temperature range from -20℃ to +70℃, altitude limit ≤3000m, IP20 rating, and standby power consumption <3W. It ensures stable, reliable operation in industrial, outdoor, and complex environmental conditions, reducing after-sales maintenance costs for long-term project operation.

Full Technical Specifications

Target Industries & Application Scenarios

Residential & Multi-Dwelling Real Estate Projects

Applicable scenarios: Smart homes, apartments, rental housing, villas

Core values: Remote power shutoff for simplified tenant management, overload protection for resident safety, real-time power consumption monitoring for energy saving, and seamless integration with mainstream smart home ecosystems.

Ideal for: Real estate developers, property management companies, rental housing operators, and residential electrical contractors.

Commercial & Public Facilities

Applicable scenarios: Shopping malls, office buildings, hotels, schools, retail shops

Core values: Centralized remote/timed control of lighting and HVAC systems, time-sharing zoning control to cut energy costs, emergency remote power shutdown for fire or flood incidents, and full compliance with commercial building safety regulations.

Ideal for: Commercial building contractors, system integrators, facility management teams, and hospitality project operators.

Industrial & Agricultural Automation Projects

Applicable scenarios: Factories, farms, greenhouses, breeding farms

Core values: Automated timed control of irrigation, ventilation, and production equipment, sequential start-stop functionality to avoid inrush current damage, peak-valley electricity management to reduce energy costs, and remote monitoring for unattended sites.

Ideal for: Industrial automation integrators, agricultural engineering companies, factory facility managers, and agricultural infrastructure operators.

Smart City & Public Infrastructure

Applicable scenarios: Streetlights, EV charging stations, transportation hubs, public parks

Core values: Remote monitoring and fault alarm for streamlined O&M efficiency, leakage and temperature monitoring to prevent electrical fires, and precise electricity metering for refined energy management.

Ideal for: Municipal engineering contractors, smart city solution providers, and public infrastructure operators.

Step-by-Step Installation & Configuration Guide

Pre-Installation Safety Preparation

Ensure the upstream power supply is fully disconnected before installation, and verify the device’s rated voltage and current match the project’s electrical system requirements. All installation work must be performed by a certified electrician to comply with local electrical safety regulations.

Step-by-Step Wiring & DIN Rail Mounting

Mount the device on a standard 35mm DIN rail in the distribution box, ensuring secure fixation.

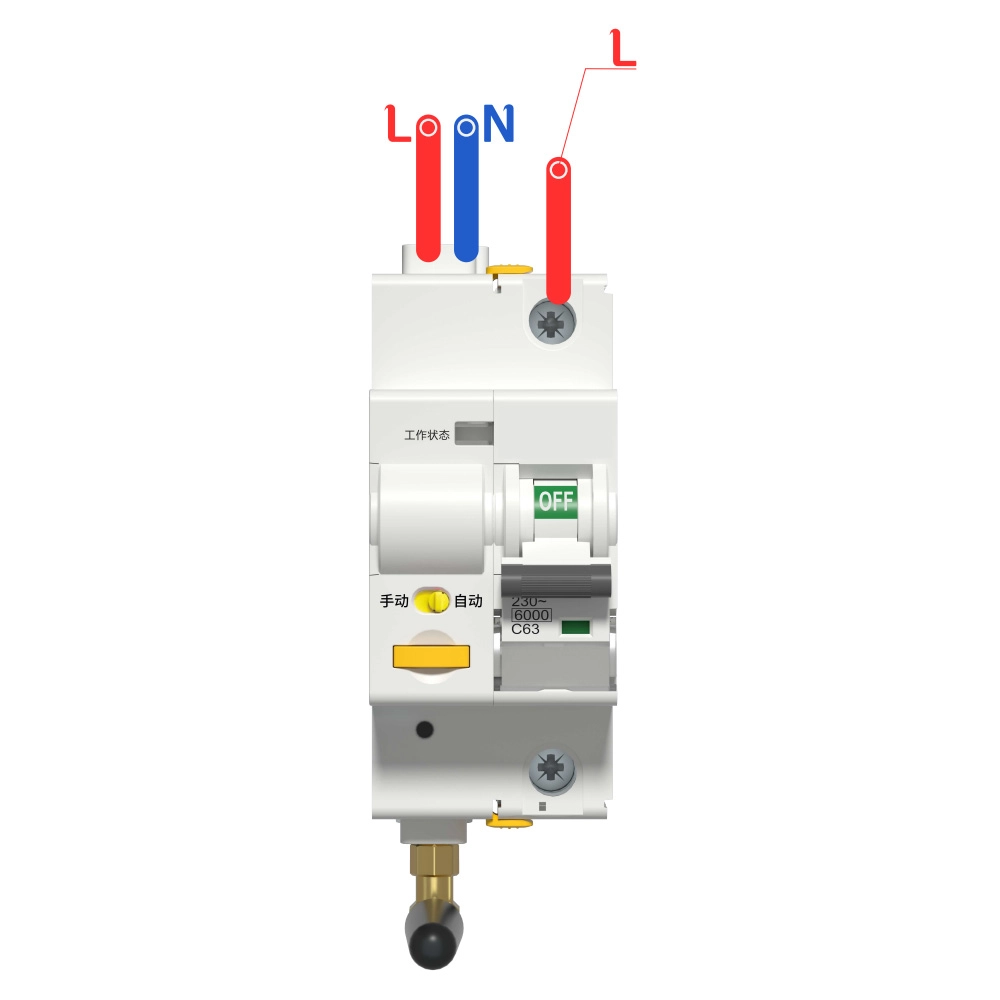

Connect the upper terminal of the MCB to the mains power supply, and the lower terminal to the load, following the product wiring diagram.

Confirm all wiring connections are tight and secure, with no loose terminals or exposed conductors.

Tuya APP Pairing & ZigBee Network Configuration

• Download the Tuya APP on your mobile device, register an account, and log in.

• Power on the device, wait 10 seconds, then press and hold the pairing button until the indicator light starts flashing, confirming the device has entered pairing mode.

• In the Tuya APP, click the "+" icon in the top right corner to enter the device adding interface, and wait for the app to detect the device automatically.

• Select the 2.4G WiFi network for the device to connect to, and follow the on-screen prompts to complete the pairing process.

• Name the device and assign it to the corresponding project category, then click "Finish" to complete the configuration.

Bulk Deployment Tips for Large-Scale Projects

For multi-device deployment in commercial or industrial projects, use the Tuya APP’s batch configuration function to pre-set unified parameters, protection thresholds, and automation rules, reducing on-site configuration time and ensuring consistent settings across all devices.

Compliance & Safety Certifications

This 1P ZigBee Smart MCB is designed and manufactured in strict accordance with GB/T16917.1-2014 international electrical safety standards, with all core components passing rigorous performance and safety testing. It meets the mandatory safety requirements for electrical equipment used in residential, commercial, and industrial projects globally, with full test reports and certification documents available upon request.

Customization & Bulk Order Services

We offer comprehensive project-specific customization and bulk order support to meet the unique needs of system integrators, contractors, and distributors:

Customizable Items: Protection thresholds, auto reclosing time settings, communication protocol adjustments, branding OEM/ODM, custom packaging, and rated current specification tailoring.

Bulk Order Benefits: Tiered volume-based pricing discounts, dedicated project account managers, free technical support for system integration, complimentary pre-production samples, stable bulk production lead times, and global shipping support.

Cooperation Modes: Wholesale distribution, brand partnership, OEM/ODM branding, and exclusive project customization.

FAQ

What communication protocols does this 1P ZigBee Smart MCB support?

This device supports Tuya ZigBee, Tuya WiFi, Mi Home WiFi, RS485, and dry contact protocols, enabling seamless integration with most mainstream building automation and smart home systems.

Can I customize the protection thresholds and auto reclosing time for my project?

Yes, the protection thresholds and auto reclosing time are fully customizable to meet the specific safety and operational requirements of your project. Our engineering team can also provide custom parameter configuration for bulk orders.

Is this smart MCB compliant with international electrical safety standards?

Yes, this device is fully designed and manufactured in compliance with GB/T16917.1-2014 international standards, with all core safety functions tested and certified to meet global electrical safety requirements.

Can this MCB be integrated into existing building management systems via RS485?

Yes, the device supports RS485 communication, enabling seamless integration with existing BMS and industrial control systems, with full protocol documentation provided for system integrators.

What is the lead time for bulk orders, and do you offer OEM services?

We offer flexible lead times for bulk orders, with standard production lead times of 2-4 weeks for volume orders. We also provide full OEM/ODM services, including custom branding, packaging, and parameter configuration for brand partners and project contractors.
